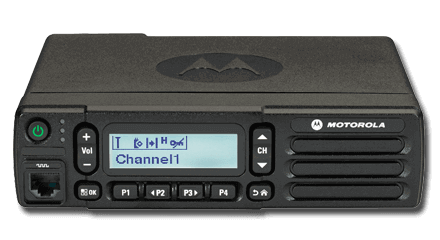

The power of digital communications is now within reach with the MOTOTRBO XPR 2500 mobile two-way radio. Compact and capable, the XPR 2500 keeps workers connected whether they are picking up cargo or transporting passengers. Delivering the best in digital radio technology, with features like integrated voice systems capability, twice the calling capacity, and clearer voice communications, the XPR 2500 is versatile and powerful. For those operating on analog, the XPR 2500 lets you upgrade to digital at your own pace and budget, with simple scalability to add functions and features. For affordable digital voice systems capability, the MOTOTRBO XPR 2500 gets the job done with clarity and ease.
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz
UHF: 403-470 MHz
Power Output:
1-25W, 25-45W - VHF, 1-25W, 25-40W - VHF
Number of Channels/Groups/Zones:
128 Channels
Channel spacing:
Physical Characteristics
Dimensions H x W x D
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
Transmit Interrupt Capability
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it's needed.
Over the Air Programming (OTAP)
Manages, writes and reads up to 5,000 radio configurations over the air.
Enhanced Privacy
Built-in scrambling for increased security.
Systems Capability
Experience the far-reaching coverage of MOTOTRBO. IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users without adding new frequencies.
Compatible with Radio Management Suite
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.
Intelligent Audio
Radio volume automatically adjusts to compensate for background noise so workers don't have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.
IMPRES Audio
Whether it's a whisper during a covert operation in a dark alley or commanding a noisy fire scene, IMPRES audio accessories are loud, clear and intelligible in both analog and digital modes.
IP54 Rated
Protects your radio from dust and spills.
Communications are Evolving: Next-Generation MOTOTRBO Two-way Radios
From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.
Antennas
HAD4006
VHF 1/4 Wave Antenna, 136-144 MHz, Through-hole
HAD4007
VHF 1/4 Wave Antenna, 144-150.8 MHz, Through-hole
HAD4008
VHF 1/4 Wave Antenna, 150.8-162 MHz, Through-hole
HAD4009
VHF 1/4 Wave Antenna, 162-174 MHz, Through-hole
HAD4022
VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz, Through-hole
HAE4002
UHF 403-430 MHz, 1/4 Wave Roof Mount, Mini-U
HAE4003
UHF 1/4 Wave Antenna, 450-470 MHz, Through-hole
HAE6022
UHF, 403-527 MHz, 2dB Gain, Through-hole Mount, Mini-U
RAE4004ARB
UHF 445-470 MHz, 5 dB Gain Roof Mount, Mini-U
Control Station Accessories
GKN6266-N
DC Power Supply Cable (works with GPN6145 Power Supply)
GLN7318-N
Desktop Tray without Speaker
GLN7326-N
Desktop Tray with Speaker
HKN9088-N
Mobile Mini-U Antenna Adapter - 8 Ft. Cable
HLN9457-N
Hardware Kit for use with the Expanded Accessory Connector (includes 16 connector pins, five (5) 8" wires with pins attached and an extra housing)
PMMN4098
Desktop Microphone
Microphones
3060665A04-N
110V Line Cord, Replacement Cable for HPN4007
GMMN4065
Visor Microphone (Omni-Direction)
HLN9073
Microphone Hang-up Clip (requires install)
HLN9414
Microph Hang-up Clip (Universal – no install required)
HPN4007-N
Power Supply, 25-60W, for low power radios (cord included)
