Motorola Solutions
ALL-BAND P25 SMART RADIO.
FOCUSED IN THE EXTREME.

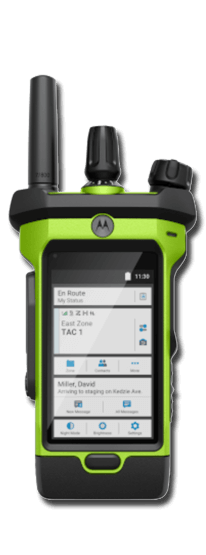

Motorola Solutions’ latest development in their mission to advance the lifeline for public safety communications, APX NEXT XE builds on the values of APX XE by delivering new and groundbreaking capabilities.
MISSION-CRITICAL DEVICE
FirstNet Certified and designed to military standards for ruggedness in extreme environments. Exaggerated controls now paired with a Gorilla Glass 3 touchscreen, combined with a user interface purpose-built for public safety that works with or without gloves - in the hottest, wettest, grittiest conditions. Every interaction is simple, fast and logical so you can stay focused on what matters most - your call, your crew and your safety.
Frequency Band:
VHF, UHF R1, UHF R2, 700/800 MHz
Frequency Range:
700/800 (764-870 MHz), VHF (136-174 MHz), UHF R1 (380-470 MHz), UHF R2 (450-520 MHz)
Power Output:
1-3 watts/700/800 MHz, 1-6 watts/VHF, 1-5 watts/UHF
Channel spacing:
12.5/20/25 kHz
Dimensions H x W x D (with standard battery)
5.4"x2.5"x1.7"
Weight (with standard battery)
18.5 oz.
Keypad/Keys
Touchscreen
Display
3.6" Mission-critical Touchscreen: 800x480 TFT 24-bit Full
Color Transflective Display, 1 mm Toughened Glass Lens
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
Dust Resistance: IP6X
Water Resistance (Submersion): IPX8
ADVANCED MISSION-CRITICAL VOICE AND DATA. ROOTED IN SAFETY
In high-stress and extreme situations, efficient team communication can help make the difference between life and death. Your radio is your lifeline.
Motorola Solutions' APX Next XE is the next step in advancing it. A radio that works when you need it, without distraction or doubt.
Mission-critical performance and best-in-class audio ensure your lifeline is there when you need it. A rugged design, purpose-built for extreme environments. Exaggerated controls make it easy to operate with or without gloves. Natural interfaces - from touchscreens to voice controls - keep your focus where it matters, when it matters. Ultra-connectivity gives you public safety LTE, Bluetooth and Wi-Fi. And new applications and services, SmartConnect and ViQi, bring new intelligence to the field.
APX NEXT XE reduces configuration time and update cycles from months to minutes. Radios can be provisioned and updated in the cloud, and new capabilities - like video, data analytics and AI applications - can be added as your needs evolve.
APX NEXT XE brings usability and performance advancements to every aspect of the radio experience. Interfaces are streamlined. Workflows are accelerated. Mission-critical reliability is ensured. And the focus that keeps firefighters safe and effective in extreme environments is protected.
Voice and video, combined without compromise
What if your life was simpler? By converging Motorola Solutions industry-leading APX NEXT and APX N70 radio lines and body camera technology, they have transformed what it means to be on the front line.Now, your team can get the best of both worlds, by accessing mission-critical communications, evidential video capture and public safety-grade AI from one device, without sacrificing usability.
SmartConnect
SmartLocate
SmartMapping
SmartMessaging
SmartProgramming
SmartTouch
ViQi Virtual Assistant
 | AN000296A01 700/800 MHz, Stubby Antenna |
 | AN000297A01 All-band Antenna |
 | AN000369B01 UHF, 380-470 MHz, Stubby Antenna |
| AN000369B02 UHF, 450-527 MHz Stubby Antenna |
| AN000392A01 700/800 MHz, Short Whip Antenna |
 | AN000393A01 UHF, 350-520 MHz, Short Whip Antenna |
 | NNTN9217 IMPRES 2 Li-Ion 4400 mAh Battery, IP68 rugged |
| PMNN4896 IMPRES 2 Li-Ion 5550 mAh Battery, IP68 rugged |
 | AY000223A01 Boston Leather Fireman's Radio Strap with button back holder |
 | AY000229A01 Boston Leather Fireman's Radio Strap with button back holder - XL |
| NTN8266 2.5" Hard Plastic Belt Clip (not compatible with UHF Portable Radios) |
 | PMLN8208 APX NEXT XE Classic Holster (Belt clip sold separately) |
 | PMLN8209 APX NEXT XE Boston Leather Carry Case |
 | RLN6486 Boston Leather Fireman's Radio Strap |
 | RLN6487 Boston Leather Fireman's Radio Strap - XL |
 | RLN6488 Boston Leather Anti-Sway Strap for Boston Leather Fireman's Radio Strap |
 | 3087791G01 MUC Power Cord Only, US |
| 3087791G10 Power cord for IMPRES 2 multi-unit charger, AU/NZ plug |
| 3087791G22 Power cord for IMPRES 2 multi-unit charger, BZL plug |
| A000178A02 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
| NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Charger |
| NNTN9113 IMPRES 2 Multi-Unit Fast Charger, ANZ 100-240V |
| NNTN9114 IMPRES 2 Multi-Unit Fast Charger, BRZ 100-240V |
 | NNTN9115 IMPRES 2 Multi-Unit Fast Charger, US/NA 100-240V |
 | NNTN9199 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
| NNTN9204 IMPRES 2 Single-Unit Fast Charger, BRZ 100-240V |
 | NNTN9212 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
| NNTN9259 IMPRES 2 Single-Unit Fast Charger, ANZ 100-240V |
 | PMPN4591 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA, 100-240V |
 | PMPN4604 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
| PMPN4639 APX NEXT Vehicle Charger |
| PMPN4649 Replacement APX vehicle charger battery adapter (To be used with APX NEXT vehicle charger, PMPN4639) |
| PMPN4688 APX NEXT Travel Charger with CLA cable and mounting bracket |
 | PS000040A01 Replacement power supply unit for IMPRES 2 single-unit fast charger, US/NA 115V |
| PS000040A02 Replacement power supply unit for IMPRES 2 single-unit fast charger, US/NA 115V |
 | PS000116A01 Replacement power supply for IMPRES 2 single-unit fast charger, 100-240 VAC without power cord |
 | BDN6783 3.5mm Threaded Audio Adapter |
 | PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
 | PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
| RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
 | PMMN4135 XVP850 RSM with channel knob |
| PMMN4135_TAA XVP850 RSM with channel knob TAA compliant |
 | PMMN4136 XVP850 RSM without channel knob |
| PMMN4136_TAA XVP830 RSM without channel knob TAA compliant |
| PMMN4152_T XVE500 High impact green, no channel knob, Xtreme temperature cable |
| PMMN4152_TBLK XVE500 black housing, no channel knob, Xtreme temperature cable |
| PMMN4154_T XVE500 high impact green, channel knob, Xtreme Temperature Cable |
| PMMN4154_TBLK XVE500 black housing, channel knob, Xtreme temperature cable |
H55TGT9PW8AN APX NEXT; ALL-BAND MODEL 4.5 PORTABLE
